Roslyn Analyzers for Web Forms Migration¶
The BlazorWebFormsComponents.Analyzers NuGet package includes 8 Roslyn analyzers with automatic code fixes that detect leftover Web Forms patterns in your C# code after migration. They run live in Visual Studio and dotnet build, giving you a guided checklist for cleaning up migrated code-behind.
When to Use These Analyzers
Install the analyzer package after you've run the automated migration script (bwfc-migrate.ps1) and the Copilot skill transforms. The analyzers catch code-behind patterns that markup-level tools can't address — things like ViewState["key"] usage, IsPostBack checks, and Response.Redirect() calls that survived the initial migration.
Installation¶
Add the analyzer package to your Blazor project:
Or add the reference directly to your .csproj:
Once installed, diagnostics appear automatically in Visual Studio's Error List and during dotnet build. Each diagnostic includes a code fix you can apply with Ctrl+. (Quick Actions).
Analyzer Summary¶
| Rule ID | Severity | Name | What It Detects |
|---|---|---|---|
| BWFC001 | ⚠️ Warning | Missing [Parameter] Attribute |
Public properties on WebControl subclasses without [Parameter] |
| BWFC002 | ⚠️ Warning | ViewState Usage | ViewState["key"] access patterns |
| BWFC003 | ⚠️ Warning | IsPostBack Usage | IsPostBack or Page.IsPostBack checks |
| BWFC004 | ⚠️ Warning | Response.Redirect Usage | Response.Redirect() calls |
| BWFC005 | ⚠️ Warning | Session State Usage | Session["key"] and HttpContext.Current access |
| BWFC010 | ℹ️ Info | Required Attribute Missing | BWFC components instantiated without critical properties |
| BWFC011 | ℹ️ Info | Event Handler Signature | Methods with (object sender, EventArgs e) signature |
| BWFC012 | ⚠️ Warning | runat="server" Leftover | String literals containing runat="server" |
| BWFC013 | ⚠️ Warning | Response Object Usage | Response.Write(), Response.WriteFile(), Response.Clear(), Response.Flush(), Response.End() |
| BWFC014 | ⚠️ Warning | Request Object Usage | Request.Form[], Request.Cookies[], Request.Headers[], Request.Files, Request.QueryString[], Request.ServerVariables[] |
BWFC001: Missing [Parameter] Attribute¶
Severity: ⚠️ Warning
Category: Usage
What It Detects¶
Public properties on classes that derive from WebControl or CompositeControl that don't have a [Parameter] attribute. In Blazor, any property that should accept values from markup must be decorated with [Parameter] — otherwise the value is silently ignored.
The analyzer skips properties that are inherited from BWFC base classes (like ID, CssClass, Visible, Enabled, etc.) and static properties.
Why It Matters¶
In Web Forms, public properties on server controls are automatically available in markup. In Blazor, the [Parameter] attribute is required to wire properties to component markup. Missing this attribute is one of the most common issues after migrating custom controls — the component renders but silently ignores values passed from parent components.
Example¶
Code Fix¶
Adds [Parameter] to the property and inserts using Microsoft.AspNetCore.Components; if not already present.

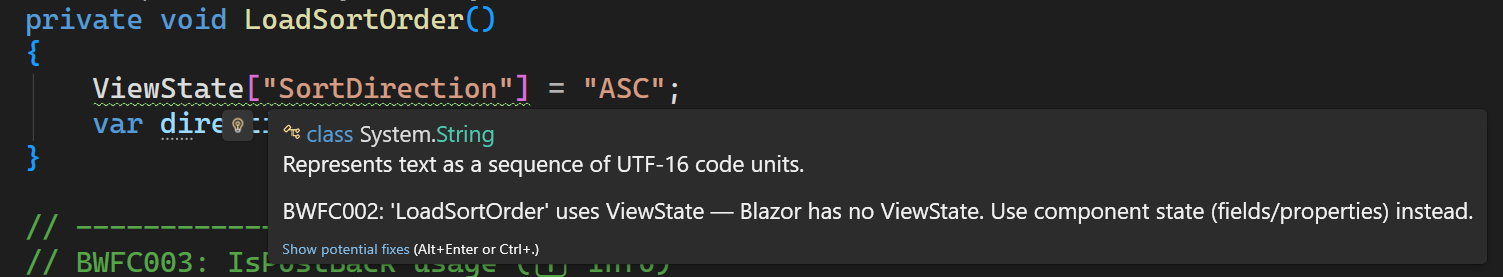

BWFC002: ViewState Usage¶
Severity: ⚠️ Warning
Category: Usage
What It Detects¶
ViewState["key"] and this.ViewState["key"] element-access patterns in code-behind. Blazor has no ViewState mechanism — it uses in-memory component state instead.
Why It Matters¶
ViewState was the persistence mechanism for Web Forms page lifecycle. In Blazor, components live in memory on the server (Blazor Server) or in the browser (Blazor WebAssembly). State is naturally preserved across re-renders as regular C# fields and properties — no serialization needed. Any leftover ViewState access will either fail at compile time or use the BWFC compatibility shim, which is meant as a stepping stone, not a long-term solution.
Example¶
protected void Page_Load(object sender, EventArgs e)
{
if (!IsPostBack)
{
// TODO: Replace ViewState["SortDirection"] with component state
// ViewState["SortDirection"] = "ASC";
}
// TODO: Replace ViewState["SortDirection"] with component state
// var direction = (string)ViewState["SortDirection"];
}
Code Fix¶
Comments out the statement and adds a // TODO prompting you to replace it with a component field or property:
See Also
The ViewState utility documentation explains the BWFC compatibility shim and the recommended path to component state.

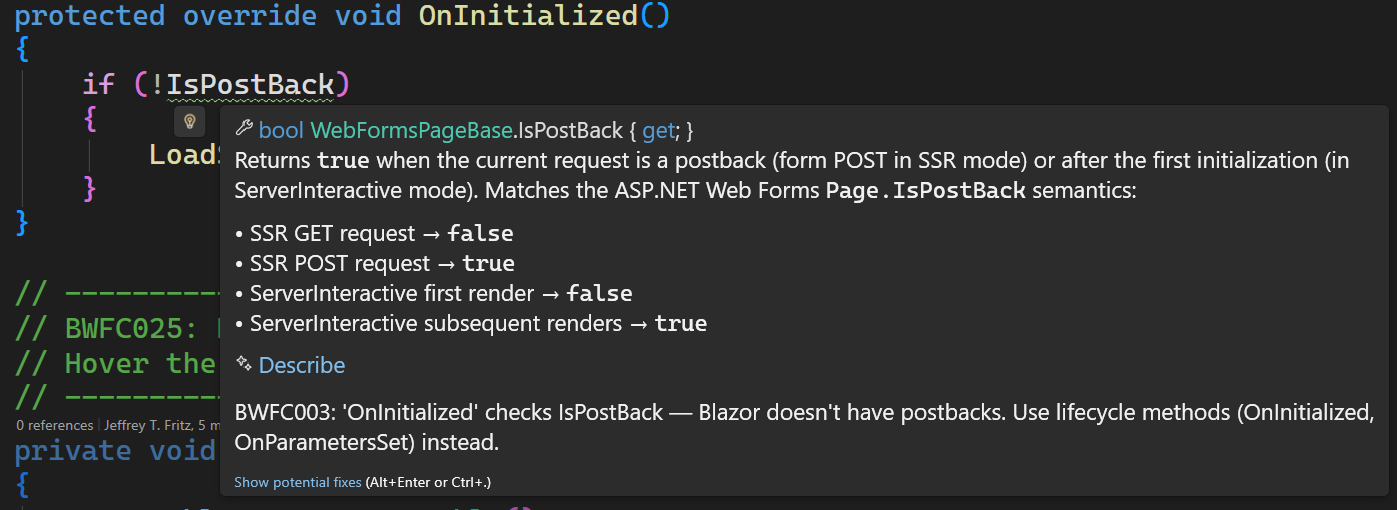

BWFC003: IsPostBack Usage¶
Severity: ⚠️ Warning
Category: Usage
What It Detects¶
References to IsPostBack and Page.IsPostBack in code-behind. Blazor does not use the postback model — it uses component lifecycle methods instead.
Why It Matters¶
In Web Forms, IsPostBack distinguished between the initial page load and subsequent postbacks. In Blazor, this distinction maps to lifecycle methods:
| Web Forms Pattern | Blazor Equivalent |
|---|---|
if (!IsPostBack) (first load) |
OnInitialized / OnInitializedAsync |
if (IsPostBack) (postback) |
Event handlers (@onclick, @onchange, etc.) |
Page_Load (every request) |
OnParametersSet / OnParametersSetAsync |
Example¶
Code Fix¶
Comments out the IsPostBack block and adds a // TODO suggesting the appropriate lifecycle method. The recommended migration:
BWFC004: Response.Redirect Usage¶
Severity: ⚠️ Warning
Category: Usage
What It Detects¶
Calls to Response.Redirect(), this.Response.Redirect(), and HttpContext.Current.Response.Redirect(). Blazor does not have an HttpResponse object available in components — navigation uses NavigationManager instead.
Why It Matters¶
Response.Redirect() works by sending an HTTP 302 response to the browser. Blazor Server communicates over a WebSocket (SignalR) connection, so there's no HTTP response to write to. Blazor WebAssembly runs entirely client-side. In both cases, NavigationManager.NavigateTo() is the correct way to perform navigation.
Example¶
Code Fix¶
Replaces the statement with a // TODO comment pointing to NavigationManager.NavigateTo(). The recommended migration:
See Also
The Response.Redirect utility documentation explains the BWFC compatibility shim for Response.Redirect.
BWFC005: Session State Usage¶
Severity: ⚠️ Warning
Category: Usage
What It Detects¶
Two patterns:
- Session element access —
Session["key"]andthis.Session["key"] - HttpContext.Current — Any access to
HttpContext.Current, which is not available in Blazor
Why It Matters¶
Web Forms relies heavily on HttpContext.Current and Session for per-user state. In Blazor Server, there is no HttpContext during SignalR hub invocations (which is most of the component lifecycle). Session state should be replaced with:
- Scoped services — registered with
builder.Services.AddScoped<TService>(), these are per-circuit in Blazor Server ProtectedSessionStorage— for browser session-scoped data that survives page reloadsProtectedLocalStorage— for data that persists across browser sessions
Example¶
Code Fix¶
Replaces the statement with a // TODO comment pointing to scoped services or ProtectedSessionStorage.
BWFC010: Required Attribute Missing¶
Severity: ℹ️ Info
Category: Usage
What It Detects¶
When well-known BWFC component types are instantiated in code-behind without setting critical properties. Currently tracks:
| Component | Required Property |
|---|---|
GridView |
DataSource |
HyperLink |
NavigateUrl |
Image |
ImageUrl |
The analyzer checks both object initializer syntax and subsequent property assignments on the same variable.
Why It Matters¶
These components won't render correctly without their required properties. When you create a GridView in code-behind without setting DataSource, it renders an empty table. This analyzer is a safety net for migrated code where data binding was previously done declaratively in ASPX markup and might have been missed during migration.
Example¶
Code Fix¶
Adds a // TODO comment above the creation statement reminding you to set the required property.
BWFC011: Event Handler Signature¶
Severity: ℹ️ Info
Category: Usage
What It Detects¶
Methods in Blazor component classes (those deriving from ComponentBase or BWFC base classes) that have the classic Web Forms event handler signature: (object sender, EventArgs e).
Why It Matters¶
In Web Forms, event handlers always followed the (object sender, EventArgs e) pattern because the framework wired them up via delegates. In Blazor, events use EventCallback and EventCallback<T>, which don't pass a sender object. Methods with the old signature won't bind correctly to Blazor's @onclick, @onchange, and other event attributes.
Example¶
public class ProductPage : WebControl
{
// TODO: Convert to EventCallback pattern — remove sender parameter, change return type if needed
protected void btnSave_Click(object sender, EventArgs e)
{
SaveProduct();
}
// TODO: Convert to EventCallback pattern — remove sender parameter, change return type if needed
protected void ddlCategory_SelectedIndexChanged(object sender, EventArgs e)
{
FilterProducts();
}
}
Code Fix¶
Adds a // TODO comment above the method. The recommended migration:
// Simple click handler — no parameters needed
private void SaveProduct()
{
// Your existing logic
}
// If you need event data, use the specific args type
private void FilterProducts(ChangeEventArgs e)
{
var selectedValue = e.Value?.ToString();
// Your existing logic
}
BWFC012: runat="server" Leftover¶
Severity: ⚠️ Warning
Category: Usage
What It Detects¶
String literals in C# code that contain runat="server" or runat='server' (case-insensitive). This typically occurs in code that dynamically builds HTML markup or in test fixtures that reference ASPX patterns.
Why It Matters¶
runat="server" was required on every Web Forms server control to distinguish it from plain HTML. Blazor has no concept of this attribute — all components are inherently server-processed. Leftover runat="server" in string literals is dead code at best and confusing at worst.
Example¶
Code Fix¶
Removes the runat="server" substring (and any leading whitespace before it) from the string literal.
BWFC013: Response Object Usage¶
Severity: ⚠️ Warning
Category: Usage
What It Detects¶
Calls to Response.Write(), Response.WriteFile(), Response.Clear(), Response.Flush(), and Response.End(). Blazor has no HttpResponse object available in components — it uses markup rendering and result objects instead.
Why It Matters¶
The Web Forms Response object is tightly coupled to the HTTP request-response cycle. In Blazor Server (which uses SignalR over WebSocket) and Blazor WebAssembly (which runs client-side), there is no HttpResponse to write to. These methods either fail at runtime or require the BWFC compatibility shim, which is meant as a stepping stone, not a long-term solution.
Each method maps to a different Blazor pattern:
| Web Forms Method | Blazor Equivalent |
|---|---|
Response.Write() |
Markup rendering (component state + template) |
Response.WriteFile() |
FileResult (from minimal API) or HttpClient for file downloads |
Response.Clear() |
Not needed — use @if conditionals in markup |
Response.Flush() |
Not needed — streaming is automatic in Blazor Server |
Response.End() |
Early return from event handler + state update |
Example¶
// TODO: Replace Response.Write/Clear/End with markup rendering or FileResult
protected void ExportButton_Click(object sender, EventArgs e)
{
// TODO: Replace Response.Write/Clear/End with markup rendering or FileResult
// TODO: Replace Response.Write/Clear/End with markup rendering or FileResult
// TODO: Replace Response.Write/Clear/End with markup rendering or FileResult
// TODO: Replace Response.Write/Clear/End with markup rendering or FileResult
}
Code Fix¶
Comments out each Response method call and adds a // TODO comment pointing to the appropriate Blazor pattern.
Recommended Patterns¶
For writing HTML content to the page:
Instead of Response.Write(), use component state and markup:
@page "/report"
@implements IAsyncDisposable
<div>
@if (!string.IsNullOrEmpty(ReportHtml))
{
@((MarkupString)ReportHtml)
}
</div>
@code {
private string ReportHtml { get; set; }
private void ExportButton_Click()
{
ReportHtml = GenerateReport();
}
}
For file downloads:
Use a minimal API endpoint that returns FileResult:
// In Program.cs or a service:
app.MapGet("/api/export-report", async () =>
{
var fileBytes = GenerateReportFile();
return Results.File(fileBytes, "application/pdf", "report.pdf");
});
// In your component:
@inject NavigationManager Navigation
private void ExportButton_Click()
{
Navigation.NavigateTo("/api/export-report", forceLoad: true);
}
BWFC014: Request Object Usage¶
Severity: ⚠️ Warning
Category: Usage
What It Detects¶
Access to Request.Form[], Request.Cookies[], Request.Headers[], Request.Files, Request.QueryString[], and Request.ServerVariables[]. Blazor does not expose an HttpRequest object in components — data flows through components properties, form binding, and HttpContextAccessor (Blazor Server only).
Why It Matters¶
The Web Forms Request object provided a centralized way to access browser-sent data. In Blazor:
- Query strings — Passed as route parameters or via
NavigationManager.Uri - Form data — Bound to component properties using
@bind - Cookies — Accessed via
HttpContextAccessor(Blazor Server only) or JavaScript interop - Headers — Accessed via
HttpContextAccessor(Blazor Server only) - Uploaded files — Handled by
InputFilecomponent, not raw file access
Leaving Request calls in place will fail at runtime or require compatibility shims.
Example¶
// TODO: Replace Request.QueryString[] with route parameters or NavigationManager.Uri
protected void Page_Load(object sender, EventArgs e)
{
// TODO: Replace Request.QueryString[] with route parameters or NavigationManager.Uri
// TODO: Replace Request.Form[] with @bind or parameter binding
// TODO: Replace Request.Cookies[] with HttpContextAccessor (Blazor Server) or JS interop
// TODO: Replace Request.Headers[] with HttpContextAccessor (Blazor Server)
// TODO: Replace Request.Files with InputFile component
}
Code Fix¶
Comments out each Request access and adds a // TODO comment pointing to the appropriate Blazor pattern.
Recommended Patterns¶
For query string parameters:
Use route parameters in your @page directive:
@page "/products/{ProductId:int}"
<h1>Product @ProductId</h1>
@code {
[Parameter]
public int ProductId { get; set; }
}
For form data:
Use @bind two-way binding:
<input @bind="Email" />
<button @onclick="HandleSubmit">Submit</button>
@code {
private string Email { get; set; }
private void HandleSubmit()
{
// Email is already populated
}
}
For cookies (Blazor Server):
Use HttpContextAccessor:
@inject HttpContextAccessor HttpContextAccessor
@code {
private string GetCookie(string name)
{
var context = HttpContextAccessor.HttpContext;
if (context?.Request.Cookies.TryGetValue(name, out var value) ?? false)
{
return value;
}
return null;
}
}
For headers (Blazor Server):
Also use HttpContextAccessor:
private string GetHeader(string name)
{
var context = HttpContextAccessor.HttpContext;
if (context?.Request.Headers.TryGetValue(name, out var value) ?? false)
{
return value.ToString();
}
return null;
}
For file uploads:
Use the InputFile component:
<InputFile OnChange="HandleFileSelected" />
@code {
private async Task HandleFileSelected(InputFileChangeEventArgs e)
{
var file = e.File;
using var stream = file.OpenReadStream(maxAllowedSize: 1_000_000);
// Process file stream
}
}
See Also
The InputFile documentation explains how to use the component for file handling in Blazor.
Using Analyzers in CI/CD¶
The analyzers integrate seamlessly with dotnet build and CI/CD pipelines. You can configure severity levels per rule and fail the build on violations.
Example: .editorconfig for CI Enforcement¶
# .editorconfig — enforce analyzer rules in CI
# Mandatory rules: fail the build
dotnet_diagnostic.BWFC001.severity = error
dotnet_diagnostic.BWFC003.severity = error
dotnet_diagnostic.BWFC004.severity = error
# Important patterns: treat as warnings
dotnet_diagnostic.BWFC002.severity = warning
dotnet_diagnostic.BWFC005.severity = warning
dotnet_diagnostic.BWFC011.severity = warning
dotnet_diagnostic.BWFC012.severity = warning
dotnet_diagnostic.BWFC013.severity = warning
dotnet_diagnostic.BWFC014.severity = warning
# Informational patterns: visible but don't block build
dotnet_diagnostic.BWFC010.severity = suggestion
CI Workflow¶
# Build the project — BWFC violations will appear as compiler warnings/errors
dotnet build MyBlazorProject.csproj
# In CI scripts, check for BWFC violations:
dotnet build MyBlazorProject.csproj --no-restore 2>&1 | grep "BWFC"
if [ $? -eq 0 ]; then
echo "Web Forms migration violations detected"
exit 1
fi
Notes¶
- All BWFC diagnostics use the format
BWFC{NNN}and can be configured via standard Roslyn mechanisms - Build-time diagnostics are consistent with editor diagnostics
- Use
.editorconfigto customize severity per project, not per file - For bulk suppression (migrating a large codebase), set all rules to
suggestioninitially, then upgrade as you clean up
Prioritization Guide: Which Rules to Fix First¶
If you're migrating a large application, fix analyzers in this order:
Phase 1: Blocking Patterns (Fix First)¶
These patterns prevent your components from working at all:
- BWFC001 — Missing
[Parameter]on public properties - Components silently ignore bound values → visual regression
-
Usually quick fixes (add one attribute per property)
-
BWFC003 —
IsPostBackchecks - Affects page initialization and event handling
- Core logic may depend on this check
-
Need to refactor to
OnInitialized/ event handlers -
BWFC004 —
Response.Redirect()calls - All navigation breaks → user can't move between pages
-
Quick 1:1 replacement with
NavigationManager.NavigateTo() -
BWFC011 — Old event handler signatures
- Event handlers won't fire → broken interactions
- Prevents using Blazor's
@onclick,@onchange, etc.
Phase 2: Data & State Patterns (Fix Next)¶
These affect how data flows through your app:
- BWFC002 —
ViewStateusage - Replace with component fields/properties
-
May require refactoring persistence logic
-
BWFC005 —
SessionandHttpContextaccess - Replace with scoped services, protected storage, etc.
-
Medium complexity depending on scope
-
BWFC014 —
Requestobject usage - Replace with route parameters,
@bind,InputFile, etc. - Usually straightforward per-instance fixes
Phase 3: Output & Response Patterns (Fix Last)¶
These are less common and more specialized:
- BWFC013 —
Response.Write(),Response.WriteFile(), etc. - Less common in modern applications
-
Usually isolated to reporting/export features
-
BWFC012 —
runat="server"in strings - Pure string cleanup, no logic impact
-
Can be done last as a polish pass
-
BWFC010 — Missing required attributes
- Usually caught by testing; low risk
- Fix as you discover missing data
Configuring and Suppressing Rules¶
Using .editorconfig¶
You can adjust severity or disable specific rules using an .editorconfig file in your project:
# Disable a specific rule
dotnet_diagnostic.BWFC001.severity = none
# Downgrade a warning to info
dotnet_diagnostic.BWFC004.severity = suggestion
# Upgrade an info to warning
dotnet_diagnostic.BWFC011.severity = warning
Using Pragma Directives¶
Suppress a diagnostic on a specific line:
Using [SuppressMessage]¶
Suppress at method or class level:
[System.Diagnostics.CodeAnalysis.SuppressMessage("Usage", "BWFC005",
Justification = "HttpContext.Current is available in this middleware context")]
public void ConfigureServices()
{
// ...
}
Bulk Suppression Strategy¶
If you have a large migrated codebase and want to address analyzers incrementally, consider setting all rules to suggestion initially, then upgrading them to warning as you clean up each category:
# Phase 1: See everything as suggestions
dotnet_diagnostic.BWFC001.severity = suggestion
dotnet_diagnostic.BWFC002.severity = suggestion
dotnet_diagnostic.BWFC003.severity = suggestion
dotnet_diagnostic.BWFC004.severity = suggestion
dotnet_diagnostic.BWFC005.severity = suggestion
# Phase 2: Enforce rules you've cleaned up
dotnet_diagnostic.BWFC001.severity = warning
dotnet_diagnostic.BWFC012.severity = warning
Recommended Workflow¶
- Run the automated migration — Use
bwfc-migrate.ps1and the Copilotwebforms-migrationskill to convert your markup and code-behind - Install the analyzer package — Add
BlazorWebFormsComponents.Analyzersto your migrated project - Build and review — Run
dotnet buildand review the diagnostics in Visual Studio's Error List - Apply code fixes — Use Ctrl+. on each diagnostic to apply the suggested code fix
- Address TODOs — The code fixes insert
// TODOcomments that guide your manual refactoring - Clean up incrementally — Use
.editorconfigto manage which rules are active as you progress through the migration
