Chart

The Chart component provides data visualization by rendering interactive charts in Blazor, emulating the ASP.NET Web Forms Chart control. This is the first component in the library to use JavaScript interop, powered by Chart.js for client-side rendering.

Original Microsoft documentation: System.Web.UI.DataVisualization.Charting.Chart

HTML Output Exception

The Web Forms Chart control renders an <img src="/ChartImg.axd?..."> tag — a server-generated raster image. The Blazor Chart component renders a <canvas> element powered by Chart.js. This is a justified deviation from the project's identical-HTML-output rule because:

• Vector vs. raster: Canvas-based charts scale crisply at any resolution; the old <img> approach produced fixed-resolution PNGs/JPEGs
• Interactive vs. static: Chart.js supports tooltips, hover effects, and animations out of the box — Web Forms charts were static images
• Client-side rendering: No server round-trip to generate chart images, resulting in better performance
• No server dependency: Web Forms required the ChartImg.axd HTTP handler and System.Web.DataVisualization assembly on the server

Any CSS that targeted img inside your chart container will need to target canvas instead.

Chart.js Dependency

The Chart component automatically loads Chart.js via JavaScript interop. The chart.min.js file is bundled in the library's static assets and loaded on demand — no manual script tags are required. See JavaScript Setup for general JS configuration options.

Features Supported in Blazor

Chart Types (8 of 35)

SeriesChartType	Chart.js Mapping	Description
Column	bar (vertical)	Vertical bar chart
Bar	bar (horizontal)	Horizontal bar chart
Line	line	Line chart
Area	line (with fill)	Filled area chart
Pie	pie	Pie chart
Doughnut	doughnut	Doughnut (ring) chart
Point	scatter	Scatter plot
StackedColumn	bar (stacked)	Stacked vertical bar chart

Component Parameters

Parameter	Type	Description
ChartWidth	string	Width in CSS units (e.g., "400px", "100%")
ChartHeight	string	Height in CSS units (e.g., "300px")
Palette	ChartPalette	Color palette for auto-coloring series (default: BrightPastel)
ImageType	string	API compatibility only; not functional in Blazor
ID	string	HTML element ID
CssClass	string	CSS class applied to the container <div>
Style	string	Inline CSS style
Visible	bool	Whether the chart is rendered

Child Components

• ChartSeries — Defines a data series (chart type, data points, data binding fields)
• ChartArea — Configures chart area with X/Y axis settings
• ChartLegend — Adds and configures a chart legend
• ChartTitle — Adds a chart title

ChartSeries Parameters

Parameter	Type	Description
Name	string	Series label shown in the legend
ChartType	SeriesChartType	Chart type for this series
ChartArea	string	Name of the chart area this series belongs to
XValueMember	string	Field name for X values when data-binding
YValueMembers	string	Field name(s) for Y values when data-binding
Color	WebColor	Series color override
BorderWidth	int	Border/line width
IsVisibleInLegend	bool	Whether this series appears in the legend (default: true)
Legend	string	Name of the legend this series is associated with
MarkerStyle	string	Marker style for data points
ToolTip	string	Tooltip text
Points	List<DataPoint>	Manual data points
Items	IEnumerable<object>	Data source items for data-binding

DataPoint Properties

Property	Type	Description
XValue	object	X-axis value
YValues	double[]	Y-axis values
Label	string	Display label
Color	WebColor	Per-point color override
ToolTip	string	Tooltip text
IsValueShownAsLabel	bool	Show value as a label on the chart

ChartArea Parameters

Parameter	Type	Description
Name	string	Unique name of the chart area
AreaBackColor	WebColor	Background color
AxisX	Axis	X-axis configuration
AxisY	Axis	Y-axis configuration

Axis Properties

Property	Type	Description
Title	string	Axis title text
Minimum	double?	Minimum axis value
Maximum	double?	Maximum axis value
Interval	double?	Tick interval (step size)
IsLogarithmic	bool	Use logarithmic scale

ChartLegend Parameters

Parameter	Type	Description
Name	string	Unique name
LegendDocking	Docking?	Position: Top, Bottom, Left, Right
Alignment	string	Legend alignment
Title	string	Legend title text

ChartTitle Parameters

Parameter	Type	Description
Text	string	Title text
Alignment	string	Title alignment
TitleDocking	Docking?	Position: Top, Bottom, Left, Right

Chart Palettes

12 built-in color palettes matching the Web Forms ChartColorPalette enum:

None, BrightPastel (default), Berry, Chocolate, EarthTones, Excel, Fire, Grayscale, Light, Pastel, SeaGreen, SemiTransparent

Chart Type Gallery

Below is a visual reference for each of the 8 supported chart types. Use this gallery to choose the right chart type for your data and to see what the Blazor Chart component produces.

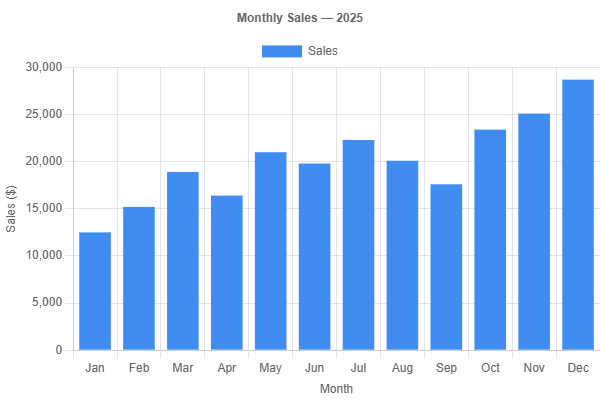

Column

Enum value: SeriesChartType.Column

The classic vertical bar chart — ideal for comparing discrete categories side by side. Use this when your X-axis represents categories (months, products, regions) and you want to emphasize differences in magnitude. This is the most commonly used chart type in Web Forms applications.

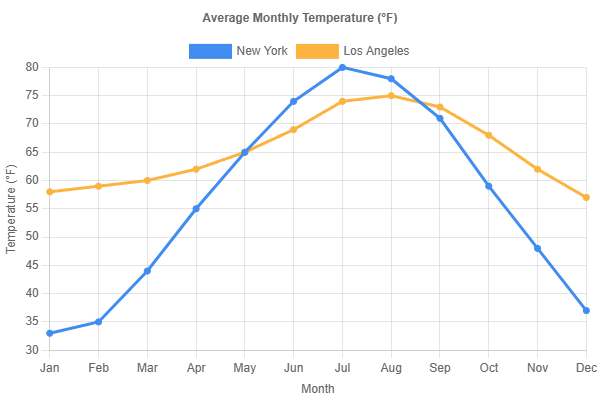

Line

Enum value: SeriesChartType.Line

Connects data points with straight line segments, perfect for showing trends over time. Use this when your X-axis represents a continuous or sequential dimension (dates, quarters, versions) and you want to highlight the direction and rate of change. Supports multiple series for comparison.

Bar

Enum value: SeriesChartType.Bar

A horizontal bar chart — the same concept as Column but rotated 90°. Use this when your category labels are long (e.g., product names, department titles) or when you have many categories that would crowd a vertical axis.

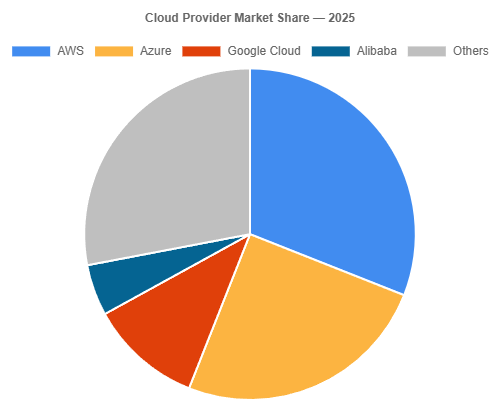

Pie

Enum value: SeriesChartType.Pie

Displays proportions of a whole as slices of a circle. Use this when you have a single data series and want to show each category's percentage of the total. Best with 3–7 slices — more than that becomes hard to read. Each slice is automatically assigned a distinct color from the active palette.

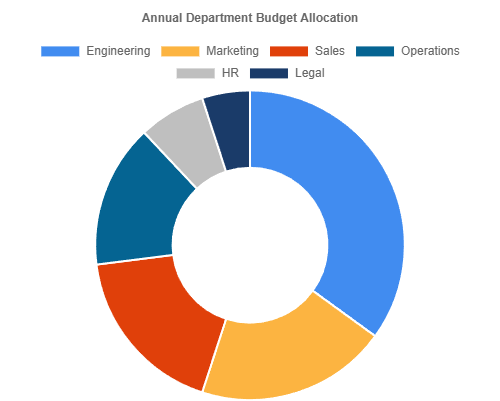

Doughnut

Enum value: SeriesChartType.Doughnut

A ring-shaped variant of the Pie chart with a hollow center. Use this when you want the same part-to-whole visualization as a Pie chart but prefer a cleaner look, or when you want to place a summary value or label in the center area. Each segment receives a distinct palette color automatically.

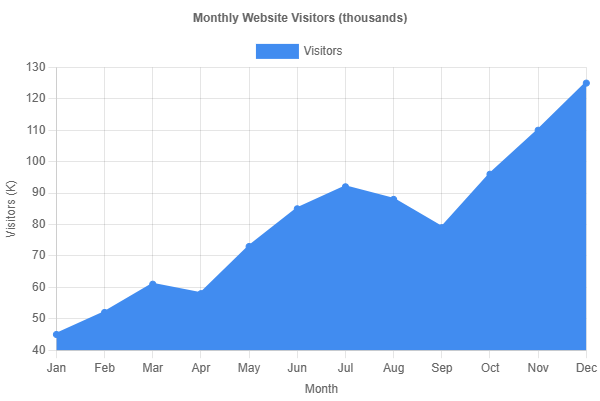

Area

Enum value: SeriesChartType.Area

A Line chart with the region below the line filled in. Use this when you want to emphasize the volume or cumulative total over time, rather than just the trend line. Works well for showing how a value accumulates or for comparing the magnitude of multiple series.

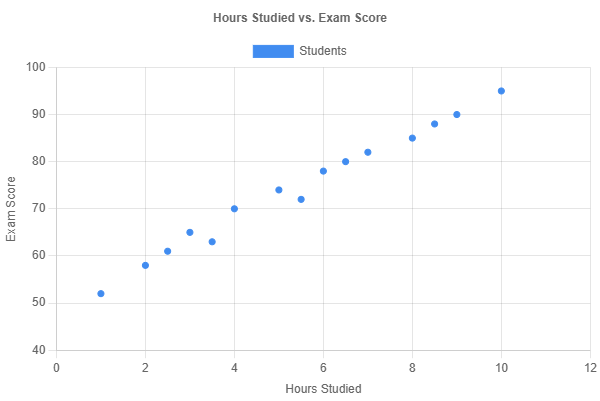

Scatter

Enum value: SeriesChartType.Point

Plots individual data points on an X/Y grid without connecting lines. Use this when both axes represent numeric values and you want to reveal correlations, clusters, or outliers in your data. Note that the Web Forms enum value is Point, not Scatter.

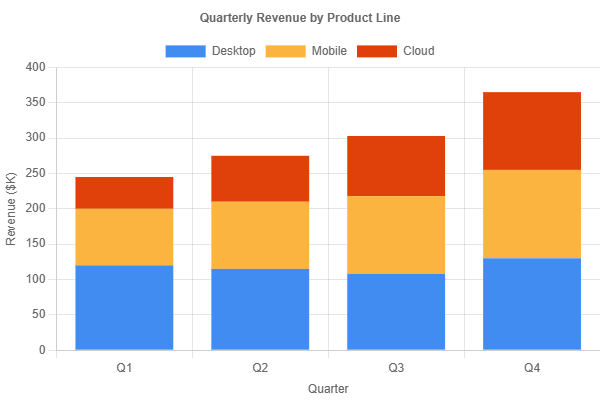

Stacked Column

Enum value: SeriesChartType.StackedColumn

Stacks multiple series vertically within each category column. Use this when you want to show both the total value per category and the breakdown of contributing series. Each color band represents one series, and the full column height shows the aggregate.

Web Forms Features NOT Supported

Chart Types Not Supported

27 additional chart types from the SeriesChartType enum are defined but will throw NotSupportedException if used. The most commonly requested:

Chart Type	Status	Notes
Stock	Not supported	OHLC financial charts
Candlestick	Not supported	Financial candlestick charts
Bubble	Not supported	Bubble charts (sized scatter)
Radar	Not supported	Radar/spider charts
Polar	Not supported	Polar area charts
Funnel	Not supported	Funnel charts
Pyramid	Not supported	Pyramid charts
Spline	Not supported	Smooth line charts
StackedBar	Not supported	Stacked horizontal bars
StackedArea	Not supported	Stacked area charts
Range / RangeColumn	Not supported	Range charts
BoxPlot	Not supported	Statistical box plots

Other Unsupported Features

• Image export (SaveImage) — Not available. Use the Chart.js canvas API directly via JS: canvas.toDataURL() or canvas.toBlob()
• 3D chart rendering — Chart.js is 2D only; Web Forms supported ChartArea3DStyle
• Annotations — Web Forms Annotations collection is not implemented
• Map areas / hot spots — Clickable regions on the chart image (MapAreas) are not supported
• Data binding via DataSource / DataBind() — Use the Items parameter on ChartSeries or populate Points manually
• ChartImg.axd HTTP handler — Not needed; rendering is client-side
• Skins and themes — Use CSS and Palette instead
• Serialization (ChartSerializer) — Not applicable

Web Forms Declarative Syntax

<asp:Chart
    ID="Chart1"
    runat="server"
    Width="600px"
    Height="400px"
    Palette="BrightPastel"
    ImageType="Png"
>
    <Titles>
        <asp:Title Text="Monthly Sales" Docking="Top" />
    </Titles>
    <Legends>
        <asp:Legend Name="Legend1" Docking="Bottom" />
    </Legends>
    <Series>
        <asp:Series
            Name="Sales"
            ChartType="Column"
            XValueMember="Month"
            YValueMembers="Amount"
        />
    </Series>
    <ChartAreas>
        <asp:ChartArea Name="ChartArea1">
            <AxisX Title="Month" />
            <AxisY Title="Revenue ($)" />
        </asp:ChartArea>
    </ChartAreas>
</asp:Chart>

Code-behind (Web Forms):

protected void Page_Load(object sender, EventArgs e)
{
    Chart1.DataSource = GetSalesData();
    Chart1.DataBind();
}

Blazor Razor Syntax

Basic Chart with Data Points

<Chart ID="Chart1" ChartWidth="600px" ChartHeight="400px" Palette="ChartPalette.BrightPastel">
    <ChartTitle Text="Monthly Sales" />
    <ChartLegend Name="Legend1" LegendDocking="Docking.Bottom" />
    <ChartSeries Name="Sales" ChartType="SeriesChartType.Column"
                 Points="@salesData" />
    <ChartArea Name="ChartArea1"
               AxisX="@(new Axis { Title = "Month" })"
               AxisY="@(new Axis { Title = "Revenue ($)" })" />
</Chart>

@code {
    private List<DataPoint> salesData = new()
    {
        new DataPoint { Label = "Jan", YValues = new[] { 12000.0 } },
        new DataPoint { Label = "Feb", YValues = new[] { 15000.0 } },
        new DataPoint { Label = "Mar", YValues = new[] { 18000.0 } },
        new DataPoint { Label = "Apr", YValues = new[] { 14000.0 } },
        new DataPoint { Label = "May", YValues = new[] { 21000.0 } },
        new DataPoint { Label = "Jun", YValues = new[] { 19000.0 } }
    };
}

Data-Bound Chart

<Chart ID="SalesChart" ChartWidth="100%" ChartHeight="400px">
    <ChartTitle Text="Sales by Region" />
    <ChartSeries Name="Revenue" ChartType="SeriesChartType.Column"
                 XValueMember="Region" YValueMembers="Revenue"
                 Items="@regions" />
    <ChartArea Name="MainArea"
               AxisX="@(new Axis { Title = "Region" })"
               AxisY="@(new Axis { Title = "Revenue ($)", Minimum = 0 })" />
</Chart>

@code {
    private List<object> regions = new()
    {
        new { Region = "North", Revenue = 45000 },
        new { Region = "South", Revenue = 38000 },
        new { Region = "East", Revenue = 52000 },
        new { Region = "West", Revenue = 41000 }
    };
}

Multi-Series Line Chart

<Chart ID="TrendChart" ChartWidth="700px" ChartHeight="400px"
       Palette="ChartPalette.Excel">
    <ChartTitle Text="Quarterly Trends" TitleDocking="Docking.Top" />
    <ChartLegend Name="Legend1" LegendDocking="Docking.Bottom" />
    <ChartSeries Name="2024" ChartType="SeriesChartType.Line"
                 Points="@data2024" BorderWidth="2" />
    <ChartSeries Name="2025" ChartType="SeriesChartType.Line"
                 Points="@data2025" BorderWidth="2" />
    <ChartArea Name="ChartArea1"
               AxisX="@(new Axis { Title = "Quarter" })"
               AxisY="@(new Axis { Title = "Units Sold", Minimum = 0 })" />
</Chart>

@code {
    private List<DataPoint> data2024 = new()
    {
        new DataPoint { Label = "Q1", YValues = new[] { 120.0 } },
        new DataPoint { Label = "Q2", YValues = new[] { 150.0 } },
        new DataPoint { Label = "Q3", YValues = new[] { 180.0 } },
        new DataPoint { Label = "Q4", YValues = new[] { 200.0 } }
    };

    private List<DataPoint> data2025 = new()
    {
        new DataPoint { Label = "Q1", YValues = new[] { 140.0 } },
        new DataPoint { Label = "Q2", YValues = new[] { 175.0 } },
        new DataPoint { Label = "Q3", YValues = new[] { 210.0 } },
        new DataPoint { Label = "Q4", YValues = new[] { 245.0 } }
    };
}

Pie Chart with Legend

<Chart ID="PieChart" ChartWidth="500px" ChartHeight="400px"
       Palette="ChartPalette.Berry">
    <ChartTitle Text="Market Share" />
    <ChartLegend Name="Legend1" LegendDocking="Docking.Right"
                 Title="Products" />
    <ChartSeries Name="Share" ChartType="SeriesChartType.Pie"
                 Points="@marketData" />
</Chart>

@code {
    private List<DataPoint> marketData = new()
    {
        new DataPoint { Label = "Product A", YValues = new[] { 35.0 } },
        new DataPoint { Label = "Product B", YValues = new[] { 28.0 } },
        new DataPoint { Label = "Product C", YValues = new[] { 22.0 } },
        new DataPoint { Label = "Product D", YValues = new[] { 15.0 } }
    };
}

HTML Output

Blazor Input

<Chart ID="MyChart" ChartWidth="400px" ChartHeight="300px">
    <ChartSeries Name="Sales" ChartType="SeriesChartType.Column"
                 Points="@data" />
</Chart>

Rendered HTML

<div id="MyChart" style="width:400px;height:300px">
    <canvas id="MyChart_canvas_a1b2c3d4"></canvas>
</div>

Comparison with Web Forms Output

Web Forms rendered: <img src="/ChartImg.axd?i=chart_abc123&amp;g=..." />

The Blazor component renders a <div> wrapper with a <canvas> child. Chart.js draws directly on the canvas — no server-generated images, no HTTP handler.

Migration Notes

1. Remove the asp: prefix — <asp:Chart> becomes <Chart>
2. Remove runat="server" — Not needed in Blazor
3. Replace DataSource + DataBind() with Items parameter — Pass your data collection to ChartSeries.Items or populate ChartSeries.Points manually
4. ChartType values remain the same — Column, Bar, Line, Pie, etc. are identical enum values (use SeriesChartType.Column syntax)
5. Palette values remain the same — Use ChartPalette.BrightPastel syntax instead of the string "BrightPastel"
6. Chart.js renders client-side — No ChartImg.axd handler registration needed; better performance and interactivity
7. Width/Height become ChartWidth/ChartHeight — These accept CSS unit strings (e.g., "400px", "100%")
8. Axis configuration uses POCO objects — Instead of nested XML elements, use new Axis { Title = "...", Minimum = 0 }
9. Child element names changed — <Titles> → <ChartTitle>, <Legends> → <ChartLegend>, <Series> → <ChartSeries>, <ChartAreas> → <ChartArea> (singular, no wrapper element)
10. ImageType is ignored — Chart.js renders to canvas, not an image file

Before (Web Forms)

<asp:Chart ID="Chart1" runat="server" Width="600" Height="400"
           Palette="BrightPastel" ImageType="Png">
    <Titles>
        <asp:Title Text="Sales Report" Docking="Top" />
    </Titles>
    <Legends>
        <asp:Legend Name="Legend1" Docking="Bottom" />
    </Legends>
    <Series>
        <asp:Series Name="Revenue" ChartType="Column"
                    XValueMember="Month" YValueMembers="Amount" />
    </Series>
    <ChartAreas>
        <asp:ChartArea Name="ChartArea1">
            <AxisX Title="Month" />
            <AxisY Title="Amount ($)" />
        </asp:ChartArea>
    </ChartAreas>
</asp:Chart>

// Code-behind
Chart1.DataSource = GetMonthlyRevenue();
Chart1.DataBind();

After (Blazor)

<Chart ID="Chart1" ChartWidth="600px" ChartHeight="400px"
       Palette="ChartPalette.BrightPastel">
    <ChartTitle Text="Sales Report" TitleDocking="Docking.Top" />
    <ChartLegend Name="Legend1" LegendDocking="Docking.Bottom" />
    <ChartSeries Name="Revenue" ChartType="SeriesChartType.Column"
                 XValueMember="Month" YValueMembers="Amount"
                 Items="@monthlyRevenue" />
    <ChartArea Name="ChartArea1"
               AxisX="@(new Axis { Title = "Month" })"
               AxisY="@(new Axis { Title = "Amount ($)" })" />
</Chart>

@code {
    private List<object> monthlyRevenue;

    protected override void OnInitialized()
    {
        monthlyRevenue = GetMonthlyRevenue()
            .Cast<object>().ToList();
    }
}

See Also

• GridView — Data grid with row templates
• Repeater — Flexible data repeater
• JavaScript Setup — JavaScript configuration for the library
• Chart.js Documentation — The underlying charting library
• Microsoft Chart Class Reference
